Subset properties are used to control the information that is returned from a dimension, including what members to return, whether to flatten hierarchies, sorting order, as well as member attributes.
Setting Subset Properties

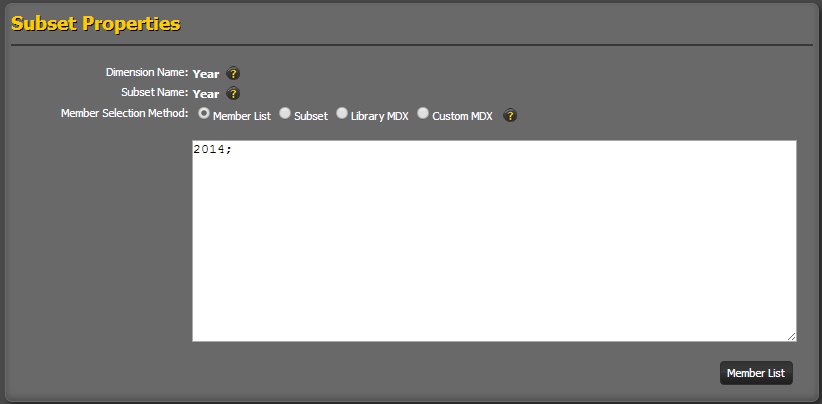

On the basic subset properties screen the following properties are available:
This field is automatically populated with the name of the dimension that the view is associated with. |
Subset Name is the name of the subset in TM1 that was used as a basis for creating the view. Normally this value is the same as the dimension name, but in cases where the name contains special characters, the subset name may be altered to conform to XML specifications. |
Member Selection Method allows you to choose from four different ways to determine how dimension members will be incorporated into a view. These four methods are: •Member List Individually select the members to be used in the view •Subset Obtain members from a TM1 Subset •Library MDX Use a centralized, pre-defined MDX statement •Custom MDX Directly enter an MDX expression
Click on one of the above links for details on each of these member selection methods. |
Previewing Subsets

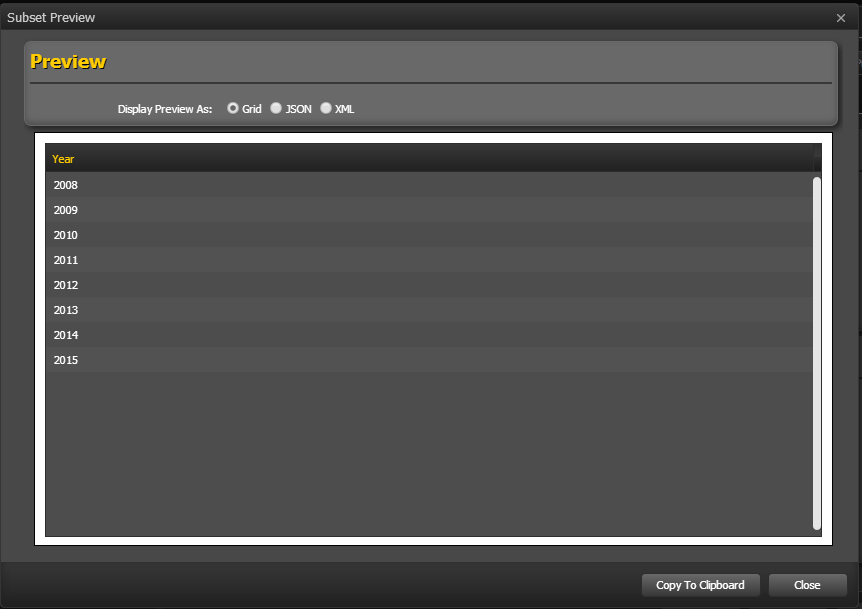

Once you have made all the required property settings, you can preview the results by pressing the Preview button. This will display the dimension in a grid layout similar to the one shown below:

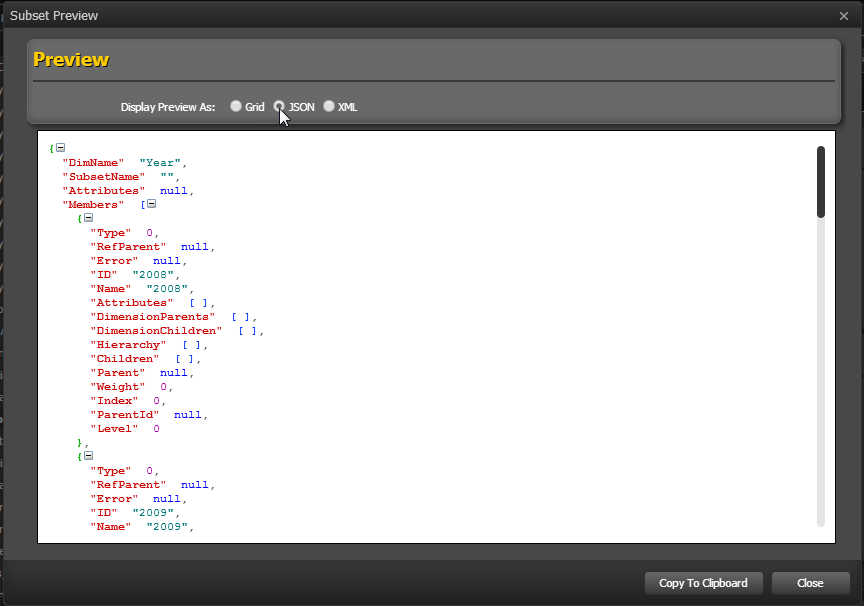

If you need to see how the dimension elements will be returned in a JSON or XML format, you can simply click on the appropriate radio button at the top of the screen. The results will be similar to the following:
|
NOTE: Previewing a subset in JSON or XML format displays only how a dimension preview would look in either of these formats. When the subset is used in a view, this is not how the view is returned. Use Preview on the View Properties page to preview how the results of the view will be returned in JSON or XML format (see Managing Cube Views for details) |
